3.3.x. LDAP Entry

[DOCUMENT TOP] / [TESTCASE MANAGER]

The 'LDAP entry' is almost same with a part of LDIF file for a distinguished name. However, the only difference is the dynamic representation of binary value for certificates, CRLs and cross certificate pairs.

certificate

If the entry contains the string ":< db_cert_#CERTID", it will be replaced by BASE64 encoded certificate which has the number "#CERTID" as ID number.

userCertificate;binary:< db_cert_#CERTID

cACertificate;binary:< db_cert_#CERTID

CRL

If the entry contains the string ":< db_crl_#CRLID", it will be replaced by BASE 64 encoded CRL which has the number "#CRLID" as ID number.

authorityRevocationList;binary:< db_crl_#CRLID

certificateRevocationList;binary:< db_crl_#CRLID

cross certificate pair

If the entry containts the string ":< db_ccp_#CCPID", it will be replaced by BASE64 encoded cross certificate pair which has the number "#CCPID" as ID number. There is another dynamic represention for a cross certificate pair. That is ":< db_certs_#ISSUEDTOCERTID_#ISSUEDBYCERTID". One of "#ISSUEDTOCERTID" or "#ISSUEDBYCERTID" may be omitted.

crossCertificatePair;binary:< db_ccp_#CCPID

crossCertificatePair;binary:< db_certs_#ISSUEDTOCERTID_#ISSUEDBYCERTID".

3.3.x.1. Using template.

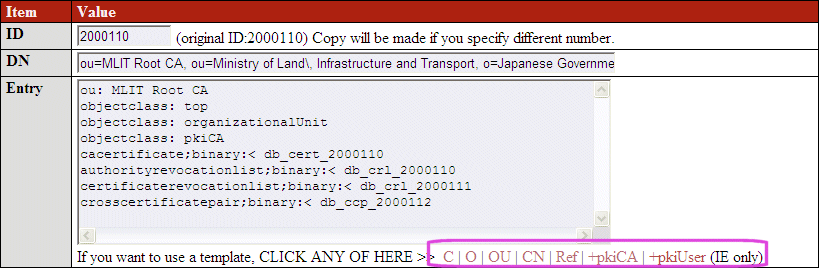

You can input any attribute type and atribute value as a part of LDIF file in 'Entry' field of 'LDAP Entry' editor. To help input to 'Entry' field, you can use template by clicking marked links as below.

• C - countryName
• O - organizationName
• OU - organizationalUnitName
• CN - commonName
• Ref - referral
• +pkiCA
• +pkiUser
