Challenge PKI : 6.4. Host table settings with virtual host

[BACK]

When you test using referrals (See here.) 'iso389.jcsinc.co.jp' and 'repository.secomtrust.net' should be added. For example we assume the IP addresses for the test suite server and the two virtual hosts are below.


196.168.1.101

196.168.1.102

196.168.1.103

6.4.1. Client Host Table Setting

set host table of your client machine as follows.


192.168.1.101	ldap1 crca.moj.go.jp

192.168.1.102	iso389.jcsinc.co.jp

192.168.1.103	repository.secomtrust.net

6.4.2. Server Host Table Setting


192.168.1.101	ldap1

192.168.1.102	ldap2 crca.moj.go.jp

192.168.1.103	ldap3 repository.secomtrust.net

6.4.3. Checking Connection

Please check whether the following URLs is accessible from certification path validation client host after all repositories were installed.


ldap://ldap1/

ldap://iso389.jcsinc.co.jp/

http://repository.secomtrust.net/cpki/testcase_jgpki2/repository.secomtrust.net/CRL.crl

http://ldap1/cpki/testcase_jgpki2/repository.secomtrust.net/CRL.crl *ACCESS FORBIDDEN*

http://crca.moj.go.jp/cgi-bin/cpki/ocsp/CR_EE_OK_2000691/simulator.cgi

http://crca.moj.go.jp/cgi-bin/cpki/ocsp/CR_EE_RV_2000692/simulator.cgi

http://crca.moj.go.jp/cgi-bin/cpki/ocsp/CR_EE_EX_2000693/simulator.cgi

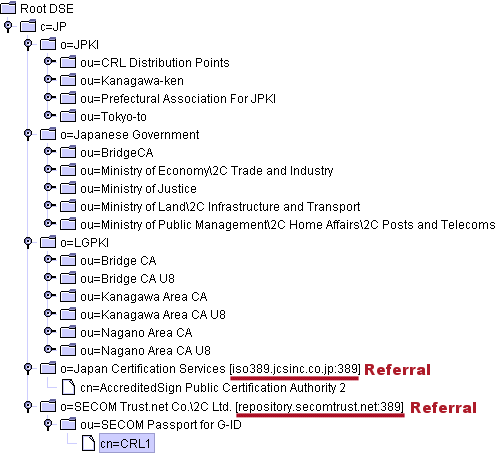

We recommend to check the LDAP repository using 'LDAP Browser' which can be downloaded at the site http://www.iit.edu/~gawojar/ldap/. When you browse 'ldap1' LDAP server you'll see like this.
